Failover

This page covers the state machine that drives MySQL failover decisions, the exact sequence of operations during a failover, Dragonfly follow-along behavior when enabled, the anti-flap cooldown, and ordered updates for zero-downtime rollouts. For the bounded-RPO contract and the exact set of transactions that can be lost on emergency failover, see Durability and RPO. For what happens when the operator itself is unavailable during a failure, see Operator availability.

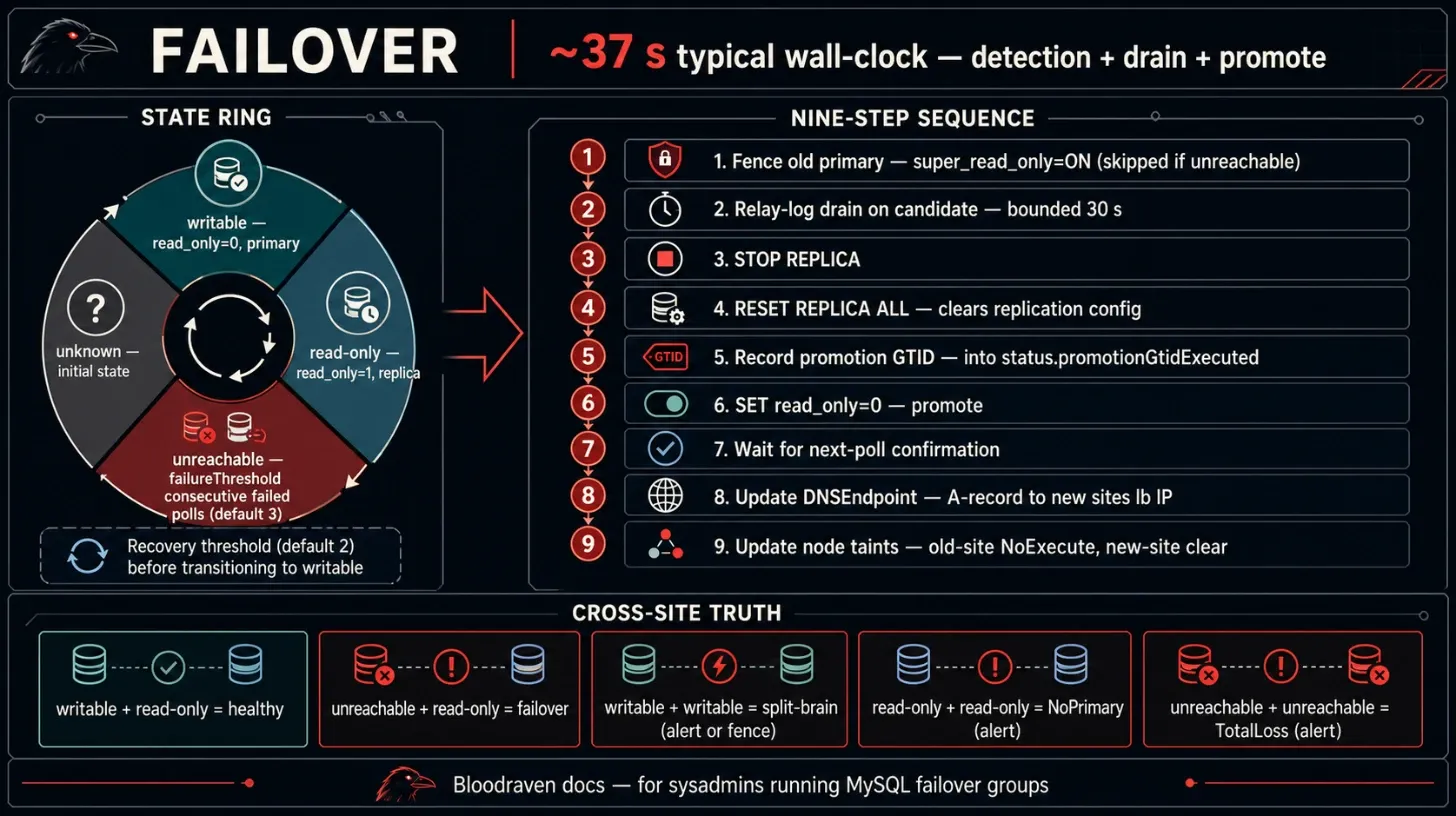

State machine

Each site in a failover group is tracked independently. The possible states are:

State transitions

Debouncing:

• A site transitions to Unreachable only after failureThreshold consecutive failed polls (default: 3). For the first fault in an otherwise healthy group, the default 2-second base interval means about 6 seconds of downtime before the operator considers the site unreachable.
• A site transitions to Writable only after recoveryThreshold consecutive successful polls showing read_only=0 (default: 2). This prevents premature promotion on transient successes.
• Transitions to ReadOnly are immediate (single poll) since this is a safe, non-destructive state.

spec.pollInterval is the poll loop's cadence, and every site that is reachable is probed on every poll. A site that has reached failureThreshold and keeps failing is probed less often: with the defaults its probes back off from 2 seconds to 4, 8, 16, and then a 30-second cap. The backoff is per site. A site that stays down does not slow the probes of any other site, so the primary's loss is still detected in about 6 seconds while a reader or DR site is down. A successful probe resets that site's failure count and returns it to the base interval.

The backoff does delay noticing that a long-down site has come back: its next probe can be up to 30 seconds away. The sidecar's self-fencing rules cover a returning old primary during that window.

Cross-site evaluation

After updating individual site states, the operator evaluates the pair together:

The operator only takes automatic action for the failover case (and, opt-in, for split brain). All other anomalous states require human investigation.

Failover is not a Degraded condition reason. Alert on Degraded=True, reason=SiteUnhealthy for this topology state, on the FailoverExecuted Kubernetes Event for a completed promotion, or on an increase in bloodraven_failovers_total. A condition alert that matches reason=Failover never fires because the operator does not emit that value.

The table is the two-candidate core reduced to two columns. In an N-site group, only PrimaryCandidate sites can be the active site, promotion target, or split-brain winner. DisasterRecovery and ReadOnly sites are non-promotable. A writable non-promotable site is an anomaly and is fenced on every poll; a reader is fenced even when it is the sole writable site. Reader outages and replication failures remain visible per site but are excluded from group readiness and degradation calculations. Readers never trigger node taint changes or become active DNS targets.

Exception — re-asserting a fenced promoted primary. A freshly promoted primary can be fenced back to read-only by its own sidecar: the sidecar's fencing lease may still be stale when the promotion lands (for example, the operator restarted after a full-site outage and promoted before its auxiliary Service endpoint became Ready, so the sidecar's operator probes kept failing while the operator was already driving MySQL). That leaves every site reachable and read-only — a state the table above refuses to touch, because without history it is indistinguishable from a fresh-start condition that needs human input.

The operator, however, does have history: status.lastFailover.target names the site it made authoritative. When all of the following hold, the operator restores writability on that site instead of alerting and waiting:

• a prior failover is recorded and its target is reachable, read-only, and a PrimaryCandidate;
• every other site is also reachable and read-only, both in the operator's debounced state and on a live @@read_only read just before the re-assert (an unreachable site hands the decision back to the normal failover row above);
• the target contains every other site's GTID_EXECUTED and the recorded status.lastFailover.promotionGtidExecuted — restoring it cannot lose transactions or create a second primary.

A group that has never failed over gets the same protection for the last site the operator saw as its unique writable primary (status.activeSite survives an operator restart, unless it was already empty), with one limit. A site the operator only observed as primary is lifted only from the read_only=ON every mysqld boots with (super_read_only OFF), never from a fence: a self-fenced primary with no failover history still waits for a human. Every mysqld starts with read_only=ON, so a primary whose MySQL container restarts comes back read-only and is re-asserted on the next poll. A site the operator made primary itself is re-asserted from any fence, as a failover target is: the fresh-deploy bootstrap reports its seed as the active site the moment it makes the seed writable, so a seed fenced by its own sidecar's startup safety net is re-asserted the same way. The log line's authority field says which applied: lastFailoverTarget or lastActiveSite.

The re-assert is rate-limited to once per failoverCooldown, logs re-asserting fenced promoted primary (see the log schema), and increments bloodraven_primary_reassert_total. GTID divergence between the sites still blocks it — that genuinely needs a human. The one exception is a peer that already carries a divergence report (Divergent replicas): its recorded divergentGtid is not held against the target, because those transactions are already reported, stay on the peer, and are re-audited against the re-asserted primary. Without it, an emergency failover that deliberately promoted a clean candidate over that peer could never re-assert the candidate after a fence-back. Anything the peer holds beyond its recorded set still blocks the re-assert.

Initializing after an operator start

A new topology manager (after an operator restart, a leader change, a new group, or a change to the group's topology settings) starts every site in Unknown. A read-only answer classifies a site on the first poll, but the primary's writable answer needs recoveryThreshold polls. Until every PrimaryCandidate has been classified, a topology with no confirmed writable site is reported as Initializing rather than NoPrimary, because NoPrimary claims every candidate was seen read-only:

• Ready and Degraded are Unknown with reason Initializing, and the message names each unclassified site and whether it has answered writable. No ALERT log line and no NoPrimaryDetected or other topology Event is emitted, and the first real verdict does not emit SiteRecovered. The deployment API reports stable=false with unstableReason: Initializing.
• With the defaults this lasts one poll (about 2 seconds) for a healthy group. A site whose probes are failing stays Unknown for up to failureThreshold polls before it becomes Unreachable.
• Initializing is bounded. A site that is still Unknown after failureThreshold + recoveryThreshold probes (5 with the defaults) is alternating between answers and errors, which the debounce never classifies. It stops counting toward Initializing: the group reports NoPrimary with an alert naming the site, and the operator logs WARN site not classified after its probe budget; probes alternate between answers and errors. If that site had answered writable, it still holds back promotion of any other site.
• The debounce still gates every action. A site that answered writable but is not confirmed is not the active site, DNS is not steered at it, and it is not fenced. No other site is promoted while it awaits confirmation, so a peer that becomes Unreachable in that window cannot produce a second primary; the failover decision is made again when the site is classified. A primary that answers writable once and then dies is promoted over on the same poll as before, failureThreshold failures after its last answer.
• A writable answer is never hidden. If a second site answers writable, the group reports SplitBrain at once, with a message naming the sites not yet confirmed, and SplitBrainDetected fires. Fencing and sitePriorities resolution still wait until the second site is confirmed writable.
• A group that is genuinely all read-only is still NoPrimary from its first poll. A site confirmed Unreachable with a read-only candidate to promote still fails over while some other site has not answered yet; only a writable answer holds the promotion back.

Failover sequence

Choosing the candidate. Among the reachable PrimaryCandidate sites the operator reads every candidate's GTID_EXECUTED and promotes the most caught-up one; priority order breaks ties. A candidate that is empty in a group that holds data, or that lacks status.lastFailover.promotionGtidExecuted, is refused. A candidate carrying a divergence report (see Divergent replicas) ranks below every candidate without one, even when it has the fresher set: the freshest clean candidate wins (logged failover picker: skipping divergent candidate). Preferring it can leave transactions that only the divergent site holds, legitimate ones included, off the new primary; the divergent site keeps its report, so they are not silently dropped. Divergence never blocks an emergency failover: when only divergent candidates remain, the freshest of them is promoted with an ERROR failover picker: promoting a divergent candidate; no other candidate remains, and once it is the confirmed primary the operator records the DivergentPromotion status condition and a DivergentSitePromoted Warning Event naming the set that became authoritative. The condition stays until an administrator removes it. A further divergent promotion before that is added to the same condition, newest last; it keeps the five newest records and says when older ones were dropped (the Events and the operator log keep all of them).

When the operator decides to fail over to a candidate site, it executes these steps in order:

1. Best-effort fence the old primary with SET GLOBAL super_read_only=ON. If no old-primary connection is available, the sequence continues because the failed site is already isolated from the operator.
2. Best-effort evict application connections from the old primary so clients reconnect through the primary Service or DNS. A failure is logged and does not block promotion.
3. Drain relay logs on the candidate, bounded by 30 seconds. The drain is complete once Executed_Gtid_Set contains the Retrieved_Gtid_Set the candidate had when the drain began, so it returns as soon as the backlog already received is applied and does not wait on a receiver that is still fetching. A stopped SQL thread with pending relay log is restarted once. An IO-thread error, such as the connect error a candidate reports once its primary is dead, does not end the drain; only an applier (SQL thread) error does. A timeout or drain error is logged and promotion continues; the drain narrows the normal asynchronous-replication RPO but is not a zero-RPO gate.
4. Stop replication on the candidate with STOP REPLICA. Failure stops the promotion attempt.
5. Remove the candidate's replication configuration with RESET REPLICA ALL. Failure stops the promotion attempt.
6. Capture the promotion GTID with SELECT @@global.gtid_executed before the candidate accepts writes. A read failure is logged and leaves the recorded value empty; it does not stop promotion.
7. Clear super_read_only on the candidate. This is required because a sidecar or earlier fence may have set it. Failure stops the promotion.
8. Clear read_only on the candidate, making it writable. Failure stops the promotion.
9. Confirm writability immediately with a bounded read_only probe. This is part of the same promotion attempt, not the next topology poll. If the probe fails, DNS and failover bookkeeping are not advanced, although the preceding write may already have made MySQL writable.
10. Record and publish the promotion. The operator records anti-flap and promotion-GTID state and increments bloodraven_failovers_total before it best-effort updates the DNSEndpoint. A DNS write failure does not undo a successful MySQL promotion; poll-driven DNS reconciliation keeps retrying. Dragonfly follow-along, when enabled, starts after this MySQL path.

Node taints, the -primary Service selector, and follower source convergence are poll-driven consequences rather than steps inside FailoverController.Execute. The old site's transition to Unreachable applies its taint before promotion. Later successful polls debounce the new primary to Writable and remove its taint; the status update then lets the resource reconciler move pod role labels and Service endpoints. Direct-source convergence separately verifies and repairs each remaining follower after replica status collection.

Direct-source convergence

Source convergence runs after replica status collection and outside the promotion sequence. It is therefore able to repair a healthy wrong source after an operator restart even when no failover history exists. Mutation is allowed only when there is exactly one writable PrimaryCandidate, no second writable site, and no bootstrap, update, restore, topology freeze, pending promotion, planned failover, or split brain in flight.

For a wrong non-empty source, Bloodraven:

1. Verifies that the active primary's GTID_EXECUTED contains the follower's executed set.
2. Runs STOP REPLICA and repeats both GTID reads and the containment check, closing the race where the SQL applier advances after the first check.
3. Runs CHANGE REPLICATION SOURCE TO with the configured credentials and TLS settings, without RESET REPLICA ALL.
4. Runs START REPLICA and boundedly verifies the direct canonical hostname and both replication threads.

If containment fails, status becomes Blocked/GTIDDiverged and no unsafe repoint occurs. A post-STOP containment failure leaves replication stopped. Other bounded failures remain Pending/MutationFailed for a later safe retry. This generic state is recorded in sourceHost, sourceConvergenceState, and sourceConvergenceReason; it does not replace the recoveryState/divergentGtid reporting of divergent replicas and old primaries.

Divergent replicas

Healthy replication threads say nothing about whether a replica holds transactions the primary never had. A replica keeps applying the primary's new transactions while it carries extra history of its own, until a conflicting row breaks it. Issue #202 is the example: an ordered update on v1.5.0 promoted a standby before it received the old primary's last 221 transactions, and the demoted site then replicated normally with those 221 transactions as errant GTIDs while the group reported Ready=True and Degraded=False.

The operator audits every read-only follower with a replication channel, promotable or not, against the confirmed primary: about every 30 seconds per site, and immediately on the first poll after the operator starts, the primary changes, a promotion or handoff completes, a fenced primary is re-asserted, or a follower's receiver reports a new Source_UUID for the active host (the primary was replaced under the same name). A maintenance handoff refused because its candidate holds extra transactions makes that candidate due on the next poll. A failed ordered-update attempt forces nothing, so a rollout that keeps failing cannot make the audit run every poll. It reads the follower's @@server_uuid and GTID_EXECUTED first and the primary's second, then computes follower minus primary. A follower's set only grows with transactions that are on the primary first, so reading in that order never reports a transaction the follower applied between the two reads. A result is discarded if the primary changed, a promotion or update began, or either server's server_uuid changed while the audit was reading. A failed or unparseable read changes nothing. The pass runs after the poll's failure handling. A poll with no follower due probes nothing; when one is due, confirming the primary and every read share one 5-second budget, so the audit cannot delay the next poll's failure detection by more than that. The audit is skipped while a bootstrap, in-place restore, initial restore, planned failover, ordered update or pending promotion is in flight.

A non-empty result makes the site divergent:

• status.sites[].recoveryState is RecoveryBlocked, divergentGtid and divergentTransactionCount describe the extra set, divergenceDetectedBy is ReplicaAudit, and divergenceComparedTo names the primary it was compared against. Old-primary recovery records the same fields with divergenceDetectedBy=OldPrimaryRecovery.
• Degraded is True with reason DivergentTransactions and a message naming the site, the count and the set. This outranks the lag, thread and source-mismatch reasons; split brain, no primary and total loss still win. Ready is not changed, and the deployment API keeps granting leases: the group is serving, and an integrity warning on a replica must not stop application deployments. (A returning old primary's block still makes the deployment API report the group unstable, as before.)
• bloodraven_divergent_transactions{site} is set, the WARN divergence detected is logged with detectedBy=ReplicaAudit, and a DivergentReplicaDetected Warning Event is emitted on new or changed evidence.
• Ordered updates and planned failovers will not promote the site (see Upgrade policy and Planned failover). Emergency failover still can, as a last resort.

The block is sticky. Healthy threads, a converged source and an operator restart do not clear it; a restarted operator restores it from status. Only a fresh audit proving the follower holds nothing the primary lacks clears it, logged as divergence cleared: replica holds no transactions the primary lacks with a DivergenceResolved Event. If the divergent site itself becomes the primary, the block is not compared with itself: it becomes the DivergentPromotion condition described under Failover sequence.

No local transaction is exempt: a CREATE USER run on a replica is reported like an order that never reached the primary, because a GTID set cannot tell them apart. There are three ways to resolve a divergent replica, and each ends with the audit clearing the block on its own:

• Discard the transactions. Save the errant binlog events first (decode them with mysqlbinlog --include-gtids='<divergentGtid>' on the replica), then reclone the site from the primary: kubectl bloodraven reclone <group> <site>, which builds the value the reclone interlock requires (or annotate bloodraven.shipstream.io/reclone-site=<site>:confirm=<group>:uid=<group uid>:gtidPrefix=<first 8+ characters of the divergentGtid's source UUID>). Before a block is recorded, a cold reclone uses reclone-site=<site>:confirm=<group>:uid=<group uid>.
• Keep the transactions. Replay the decoded transactions on the primary (review them for conflicts first). The primary then holds their GTIDs and their rows.
• Accept the replica's divergence. When the transactions carry nothing the primary needs, commit an empty transaction on the primary for each GTID: SET GTID_NEXT='<uuid>:<n>'; BEGIN; COMMIT; and finally SET GTID_NEXT='AUTOMATIC';. This makes the GTID sets agree without moving any rows: the replica keeps rows the primary lacks. Once the audit clears, the replica is promotable again, and a later promotion makes its rows authoritative with no DivergentPromotion record. Use it only for transactions whose effects are absent from both sites, harmless, or already reconciled.

For maintenance on a replica that must not reach the primary's history, run it with SET SESSION sql_log_bin=0 so it gets no GTID. There is no setting that ignores divergence. Playbook 33 in the bloodraven-doctor skill walks through the triage.

Dragonfly during failover

When spec.dragonfly.enabled=true, Dragonfly follows the MySQL failover group but remains best-effort cache/session state, not durable data.

During planned failover, Bloodraven inserts two Dragonfly phases before MySQL promotion:

1. WaitingForDragonflySync captures the source Dragonfly replication offset and waits for the target Dragonfly replica to catch up, bounded by spec.dragonfly.plannedFailover.maxSyncWait (default 30s).
2. PromotingDragonfly removes the source pod's bloodraven.shipstream.io/dragonfly-traffic label, promotes the target with REPLTAKEOVER, stamps the target as bloodraven.shipstream.io/dragonfly-role=master, and best-effort kills old-master clients so they reconnect through the active Dragonfly Service.

If sync or REPLTAKEOVER fails, spec.dragonfly.plannedFailover.onSyncTimeout controls the outcome. The default Proceed continues MySQL promotion and records status.plannedFailover.dragonfly.sessions: Lost (with dragonfly.reason DragonflySyncTimeout or DragonflyPromotionFailed). Fail rolls back before MySQL promotion and leaves the original MySQL primary active. A takeover that succeeded before the MySQL run failed leaves Dragonfly leading on the target; the run's result then carries the warning DragonflySessionsLost.

The run finishes a takeover (relabels the target master, demotes, evicts and recreates the source) only when this operator process sent REPLTAKEOVER for the run and received its success reply. Anything else is an unconfirmed takeover: a target that already reports role:master before REPLTAKEOVER is sent (a Dragonfly pod restarts with no --replicaof and empty data, so a target that restarted during the run is an empty standalone master), a lost reply (a timeout or transport error, not a server -ERR), and every re-run by another operator process (after a restart or a leader change) of a takeover whose intent is already recorded, which sends no REPLTAKEOVER at all. An unconfirmed takeover changes no Dragonfly role: the source is not demoted, its clients are not killed, its pod is not deleted, and the target is not relabelled; only the source's traffic label is put back so the active Service keeps its endpoint. The takeover is recorded Failed with dragonfly.reason: DragonflyPromotionFailed, a dragonfly.message that says it is unconfirmed, and a DragonflyPromotionFailed Event, and onSyncTimeout applies exactly as for a failed takeover: Fail rolls MySQL back (nothing was sent to the MySQL target), Proceed promotes MySQL and records sessions: Lost. Whatever the target did, the Dragonfly manager reconciles Dragonfly with MySQL through its normal drift and follow-up path once the run releases Dragonfly. If the Dragonfly master is neither the run's source nor its target (a Dragonfly-only promotion moved it), the takeover is refused as failed and nothing is stripped or sent. The takeover's result is recorded in its own write while the phase still reads PromotingDragonfly, so takeover.state: Succeeded (or Failed) can be seen briefly before the Promoting intent.

After a succeeded takeover the target stays the Dragonfly master (labels, status.dragonfly.activeSite, replica wiring) while the run's block reads PromotingDragonfly, Promoting, Publishing or RollingBack, also after a terminal marker ended the run, until a Dragonfly promotion to another site is stamped at or after the takeover's completion or the target is observed as a replica. A replica StatefulSet rollout does not restart the run's Dragonfly target while the run owns Dragonfly (dragonfly rollout: site is the planned failover's Dragonfly target; holding its restart).

Ownership of Dragonfly follows the planned-failover claim slot. With the group's topology manager registered, the slot decides: a run, its provisional grant, or an automation hold owns Dragonfly, and a run that released its claim after recording its promotion owns nothing, whatever its phase reads. Before the manager is registered (right after an operator restart) the status form decides: a run that still needs the claim, or a durable hold (status.plannedFailoverHold or a ManualRecoveryRequired terminal marker).

A Dragonfly snapshot upgrade pauses only the Dragonfly manager, never MySQL topology: an emergency MySQL failover during an upgrade supersedes it. The next upgrade reconcile ends the upgrade Failed with reason ActiveSiteChanged and hands the Dragonfly promotion for the new MySQL active site to the Dragonfly manager. A planned failover waits in admission (DragonflyUpgradeInFlight) while an upgrade is in flight. A snapshot-restore upgrade that spec.dragonfly.image drift asks for (upgradeStrategy: SnapshotRestore) does not start while a planned failover or hold owns Dragonfly, or while the effective Dragonfly master differs from status.activeSite: it waits, without moving any site and without holding up the rest of the reconcile (the planned failover it waits for keeps running), a Normal DragonflyUpgradeDeferred Event names the cause when it changes, and the run is retried every 10 seconds until the cause clears. An abandoned run is not restarted while spec.dragonfly is unchanged; see Snapshot-restore upgrade for the retry.

During emergency failover, MySQL promotion is the priority. After MySQL promotion succeeds, the MySQL poll loop only queues a Dragonfly promotion for the new MySQL active site and carries on; it never waits for the cache. The group's Dragonfly manager runs the promotion on its own goroutine between its polls, so a poll's observation, its status publication and a promotion never overlap. Only the latest queued request is kept; a newer MySQL decision replaces it even while it waits to run. When it runs it is checked against the group as it is then: it is dropped if a planned failover or snapshot upgrade owns Dragonfly, if a decision recorded after it (a planned failover claimed at or after the request's second, a MySQL failover to another site, or a Dragonfly promotion to another site while MySQL does not name the request's target) points elsewhere, or if its target has already been promoted. If the old Dragonfly master answers a 1s dial and PING, the operator tries REPLTAKEOVER with a 2s budget to preserve sessions. A takeover is coordinated by the master and cannot complete without it, so an unreachable old master skips straight to the fallback. If the takeover fails or is skipped, the operator falls back to REPLICAOF NO ONE on a fresh connection with its own budget: 14s after a failed takeover, because Dragonfly keeps the replica's REPLICAOF lock for the takeover budget plus 10s. That restores a writable Dragonfly master but does not guarantee session continuity. That fallback emits the Warning Event DragonflySessionsLost (not DragonflyPromotionSucceeded) and increments bloodraven_dragonfly_promotions_total{result="sessions_lost"}. If the fallback cannot be sent after a takeover, or its reply is lost, the outcome is unknown: a takeover can complete on the server after the client gives up. The operator then waits until the server can no longer be acting on the commands (the takeover budget plus 10s, plus 1s) and reads the target's role. A master is recorded as a completed promotion, with the same sessions-lost Event; anything else is a failed promotion, and the old source's traffic label is restored so the active Dragonfly Service is not left empty. Label updates, the role observation and the status.dragonfly stamp each get their own 5s budget, so a slow step cannot drop the status update. Every writer of a group's Dragonfly routing (the Dragonfly manager's polls and promotions, the planned failover's Dragonfly phase, the rollout promotion, the replica StatefulSet rollout, each snapshot-upgrade step and the reconciler's label sweep) holds one per-group gate and, after taking it, reads the group uncached from the API server, not from the informer cache, which can lag the previous holder's writes. The manager steps aside for a waiting planned failover or rollout only before it has sent a role-changing command; once REPLTAKEOVER or REPLICAOF NO ONE is on the wire, the promotion finishes and records its outcome first, even if the manager is being stopped. The gate outlives the manager: when a configuration or credential change restarts a group's managers, the replacement, and any planned failover in the meantime, waits for the old manager's last step. A planned failover that reaches its Dragonfly phase while an emergency promotion has already sent its command therefore waits for it with the MySQL source fenced: about 12-13s in practice (the takeover wait, then the fallback queued behind Dragonfly's lock), about 40s in the worst case with every step at its timeout. It reports the wait in status.plannedFailover.dragonfly.message and a Warning Event DragonflyPromotionDeferred. The promotion never returns an error to the MySQL path. If Dragonfly is unreachable, MySQL recovery still completes. A rollout promotion of a sync-proven target keeps the maxSyncWait/2 takeover budget.

The Dragonfly manager also handles Dragonfly-only failures. If the active Dragonfly master dies while MySQL remains healthy, the manager can promote the single healthy Dragonfly replica and leave status.activeSite for MySQL unchanged.

Old primary recovery

After an emergency failover, the old primary may come back online. The operator automatically detects this and takes action based on whether the old primary's data has diverged from the new primary.

Detection

On each poll cycle, if a site is read-only with no active replication (the signature of a former primary) while another site is the directly confirmed writable primary, the operator initiates recovery. Recovery is deliberately not gated on a recorded failover: a primary can change hands without one (a replica respawns writable and is adopted while the old primary respawns fenced, or the failover record was lost to a status-write outage plus an operator restart), and the orphaned ex-primary still needs to rejoin.

Only a genuinely fresh datadir is skipped and left to bootstrap/auto-clone. Freshness is decided from GTID history, not from the absence of user schemas: a site whose GTID_EXECUTED server UUIDs share nothing with the new primary (server-init transactions under a brand-new server_uuid) may still be treated as empty when it also has no user schemas. GTID tags are ignored for this check, because a tag does not change which server wrote a transaction: uuid:app:1-3 shares history with uuid:1-10. The divergence comparison that follows stays tag-exact. A returning cluster member always carries the cluster's shared UUIDs, so a schemaless but previously participating site still runs the divergence comparison — never a silent clone-over. If the new primary cannot be probed for this check, the operator fails safe toward recovery rather than toward the fresh-datadir path. The sequence:

1. Fence the returning site with SET GLOBAL super_read_only=ON (defensive — the sidecar may have already fenced it)
2. Drain application sessions until a pass finds none or spec.connectionDrainTimeout elapses (default 30s). Each topology poll performs at most one bounded eviction pass, so recovery waits without blocking failure detection or failover progress. This runs after promotion, so it cannot kill the operator's promotion session. A timeout does not block recovery because the fence prevents writes; any survivor is limited to stale reads.
3. Query @@global.gtid_executed on both the old and new primary
4. Compare GTID sets to determine if the old primary has any transactions not on the new primary

If the old primary returns writable (e.g., power was cut before the sidecar could self-fence), the operator first detects this as a split-brain condition and fences it immediately. The fence is retried on every poll cycle while the split-brain persists — a transient error on the first attempt (a network blip during the site's recovery turbulence) does not leave the returning site writable. Recovery proceeds once the site transitions to read-only.

No divergence (automatic rejoin)

If the new primary's GTID set contains all transactions from the old primary, there is no data loss. The operator automatically reconfigures the old primary as a replica:

1. SET GLOBAL super_read_only=ON
2. STOP REPLICA
3. RESET REPLICA ALL
4. CHANGE REPLICATION SOURCE TO ... SOURCE_AUTO_POSITION=1
5. START REPLICA

While the sequence runs, status.sites[].recoveryState is RecoveryInProgress and the RecoveryPending condition is True with reason RecoveryInProgress. The operator keeps that state until MySQL reports healthy replication and the bounded application-connection drain has completed, then writes replication Healthy (or Lagging) and gtidExecuted for the read-only site and clears recovery state.

Recovery and its connection drain stand down while another operation owns the sites: a planned failover that holds its claim (from Fencing until its Publishing or terminal record is durable), a planned-failover automation hold, an ordered update, or a promotion that no poll has yet observed as writable. Both kill sessions and rewrite replication, and the sites they would touch are the ones the handoff is using. A RecoveryInProgress site therefore stays that way for the length of the handoff (and for as long as a hold stands), and the drain starts over with a fresh spec.connectionDrainTimeout budget when it ends. Replication-source convergence stands down for the same window, and a topology manager restarted while its predecessor's ordered update is still finishing (a configuration or credential change) leaves the sites to that update until it exits. A planned-failover request that is only waiting for its claim (Admitting without a grant, or Deferred) owns nothing and defers nothing. A Dragonfly snapshot upgrade does not defer recovery at all: it pauses only the Dragonfly manager.

A recovery or convergence step that was already running when the handoff started finishes before the handoff touches MySQL. Each such step is bounded: a drain pass by 5s, the recovery decision and the replication rewrite by 30s each (the RecoveryInProgress status write between them does not hold the handoff), and a source repoint by 20s plus up to 20s to restart the unchanged channel if it fails. A handoff therefore waits at most about 40s. A planned failover waits for such a step before it is granted its claim, so before anything is fenced: it stays in Admitting with admission.waitReason: RecoveryInFlight, and only if the step outlasts the 2-minute admission deadline does it end NotStarted with AdmissionTimeout. Nothing is fenced either way.

Divergence detected (manual intervention required)

If the old primary has committed transactions that never replicated to the new primary, the operator:

• Keeps the site fenced (super_read_only=ON)
• Records the divergent GTID set and transaction count in status.sites[].divergentGtid and status.sites[].divergentTransactionCount
• Sets status.sites[].recoveryState to RecoveryBlocked
• Sets the RecoveryPending condition to True with reason DivergentTransactions, and Degraded to True with reason DivergentTransactions
• Emits the bloodraven_divergent_transactions Prometheus metric and a DataLossDetected Warning Event
• Excludes the site from ordered-update handoffs and planned failovers, and ranks it last for emergency failover (see Divergent replicas)

While a site is RecoveryBlocked, the operator re-verifies the divergence roughly every 30 seconds rather than freezing the first report. If the site diverges further before you resolve it (for example its pod respawned writable, accepted a few writes, and was re-fenced), divergentGtid and the count refresh to the full current set. A writable observation does not erase that evidence; split-brain remains blocked. When the site is both the recorded failover target and the unique, directly confirmed writable primary, the report becomes the DivergentPromotion condition instead of disappearing. If someone repoints the site's replication by hand, the replica GTID audit takes over re-verifying the report and keeps it until containment is proven; the report keeps divergenceDetectedBy=OldPrimaryRecovery, so it still makes the deployment API refuse leases. If the divergence is resolved externally — you replay the missing transactions onto the new primary so its GTID set comes to contain the old primary's — the re-check notices containment and automatically rejoins the site as a replica.

To recover a divergent site:

1. Investigate the divergent transactions to understand what data was lost (check status.sites[].divergentGtid)
2. Trigger a reclone with kubectl bloodraven reclone <name> <site>, which builds the annotation value, or annotate by hand. The value names the group and its uid, because CLONE INSTANCE wipes the site's datadir, and includes the first 8+ characters of the source UUID of the observed divergentGtid as a confirmation token:

   # Read the divergent GTID and the group's uid first:
   kubectl get mysqlfailovergroup <name> -o jsonpath='{.status.sites[?(@.name=="<site>")].divergentGtid}'
   kubectl get mysqlfailovergroup <name> -o jsonpath='{.metadata.uid}'
   # Then annotate (the prefix is part of the UUID, before its first ':'):
   kubectl annotate mysqlfailovergroup <name> \
     bloodraven.shipstream.io/reclone-site=<site>:confirm=<name>:uid=<uid>:gtidPrefix=<uuid-prefix>


3. The operator validates the group name, the uid and that the prefix matches the observed divergentGtid — a mismatch is rejected with a RecloneRejected Warning Event, so a fat-fingered site name can't destroy the wrong replica. When a site has no divergentGtid (cold reclone: PVC loss, manual rebuild), use kubectl bloodraven reclone <group> <site> --cold to provide the required destructive confirmation.
4. The operator runs CLONE INSTANCE on the target site, replacing all data with a fresh copy from the current primary. A RecloneRequested Event marks the start.

See Recovering a divergent old primary for the full procedure.

Prerequisites

Old primary recovery uses the replication credentials in the operator Secret (spec.credentials.operatorSecretName): MYSQL_REPLICATION_USER and MYSQL_REPLICATION_PASSWORD, set together; with neither, the operator's username and password replicate. The first-boot init script creates a dedicated replication user with REPLICATION SLAVE, REPLICATION CLIENT, BACKUP_ADMIN, CLONE_ADMIN when the MySQL datadir is empty. On a datadir that already exists, create it on every site by hand with those grants. The operator does not rotate a dedicated replication user's password: change it in MySQL as well as in the Secret.

Split-brain resolution

When the state machine observes both sites as Writable simultaneously, the operator's response is tiered:

1. After a prior operator-initiated failover -- The operator already knows which site it promoted (status.lastFailover.target). The other site being writable means the old primary returned. The operator fences it immediately (SET GLOBAL super_read_only=ON) and recovery proceeds on the next poll. This runs regardless of spec.splitBrainPolicy.
2. No prior failover history, spec.splitBrainPolicy.sitePriorities is non-empty -- The first listed site that is currently writable wins. The operator fences every other writable site and re-promotes the winner through the standard failover path. The anti-flap cooldown still applies to this promotion.
3. No prior failover history, no priorities configured -- The operator alerts only (SPLIT BRAIN: both sites are writable) and takes no automated action. This is the default.

When sitePriorities applies

sitePriorities is an ordered tiebreaker for states the operator cannot resolve from its own history. The two common triggers:

• Fresh deploy with existing data, on pods that come up writable. Both sites are writable and status.lastFailover.target is empty because this operator instance has never failed anything over. Without sitePriorities, the operator alerts and waits for an admin. Every mysqld now starts with --read-only=ON, so this needs pods from before that flag or a site unfenced by hand; with the flag, the same group comes up all read-only. That is NoPrimary, not split brain: the fresh-deploy bootstrap refuses sites that hold data, sitePriorities does not apply, and an admin picks the primary.
• Operator restart amnesia. The in-memory failover target is repopulated at startup from the newer of status.lastFailover.target and the out-of-band annotation (see Where the cooldown is stored), so a failure on either durable path no longer costs the operator its history. But if a split brain occurred during the restart window — for example, an old primary came back while the operator was restarting — the operator may never have had an opportunity to record the most recent failover at all. sitePriorities provides a deterministic answer in this case.

When history is available (case 1 above), the operator trusts it and does not consult sitePriorities. This preserves the invariant that the site most recently promoted keeps its writes.

Configuration

apiVersion: shipstream.io/v1alpha1
kind: MysqlFailoverGroup
metadata:
  name: orders
spec:
  sites:
    - name: iad
      serverID: 101
      # ...
    - name: pdx
      serverID: 102
      # ...
  splitBrainPolicy:
    sitePriorities: [iad, pdx]  # iad wins when writable; pdx is next

Every entry must match a PrimaryCandidate in spec.sites and appear once; the CRD's CEL validation rejects other names, non-promotable sites and duplicates at admission time. An empty or omitted list leaves unresolvable split brain in alert-only mode.

Data-loss implications

Configure sitePriorities only when your operational model has a clear authority order -- for example, a primary region that should win whenever it is writable, followed by explicit fallback regions.

Observability

• Metric: bloodraven_split_brain_auto_resolve_total{prefer_site="<name>"} -- counter, incremented for a successful losing-site fence; the retained label name identifies the winning site.
• Log event: split-brain auto-resolve: fencing non-preferred site per spec.splitBrainPolicy.sitePriorities at WARN, with winner and fencedSite fields.
• The standard failover log, metric (bloodraven_failovers_total), and DNS-flip metric (bloodraven_dns_flips_total) also fire, since split-brain resolution runs through the same promotion path.

Anti-flap cooldown

To prevent rapid failover oscillation (e.g., a flapping network link), the operator enforces a cooldown period between automatic failovers. The default is 5 minutes, configurable via spec.failoverCooldown.

During the cooldown:

• The operator continues to monitor both sites and update status
• Automatic failovers are suppressed
• Manual intervention can still be performed (see Operations)

The cooldown timer resets after each failover.

Where the cooldown is stored

The last failover time and target are written to two places on every promotion, so an operator restart cannot silently reset the cooldown:

The two travel different API paths — the status subresource has its own RBAC rule and admission chain — so an outage on one does not take the other with it. Both writes retry every poll until accepted, and a restarting operator rehydrates from whichever copy carries the later timestamp, including the promotion watermark (status.lastFailover.promotionGtidExecuted) that goes with it. Neither copy is ever moved to an older failover time: the annotation patch re-reads and writes only when its record is newer (at an equal time, second precision, only to change the target or to add a missing watermark), and the status write applies the same timestamp rule. A watermark over 64 KiB does not fit in an annotation; only the status copy carries it then (ERROR promotion watermark too large for the out-of-band failover record; only the status copy carries it). The promotion-gtid-executed-for annotation binds the watermark to its event (<RFC3339 last-failover> <last-failover-target>) and is written and deleted together with promotion-gtid-executed. A restart reads the watermark annotation only when that binding names the event the last-failover and last-failover-target annotations record, so a writer that advances only those two keys cannot pair a new event with an older event's watermark. A stored copy whose failover time is more than 5 minutes ahead of the writing operator's clock is no barrier: a restart already ignores such a copy, and the next promotion writes over it instead of keeping it as the newer record.

A restart that had to fall back to the annotations logs restored lastFailover from out-of-band annotations at WARN. That means this group's status writes were failing when it last promoted, and is worth alerting on. Losing the cooldown across a restart requires both paths to be rejecting writes at once; see Known limitations → Operator availability.

The annotations are operator-owned bookkeeping. Editing or removing them by hand changes what a restart believes about the cooldown; the running process keeps its in-memory value either way and rewrites both copies on its next promotion.

Ordered updates

When spec.updateStrategy.type is OrderedUpdate, spec changes (such as a new image, effective per-site MySQL config, or resource adjustments) are rolled out with zero downtime:

This sequence ensures:

• The active primary is never restarted while serving traffic
• Replication is healthy and the rolled pod has been Ready for 30s before each transition
• At most one site is unavailable at any time
• No committed transaction is lost in the handoff

The handoff of the active site is a maintenance handoff, not an emergency failover. The emergency path drains only the relay log the standby has already received, which is the right trade-off when the primary is gone but would silently drop transactions the healthy primary committed and the standby had not yet fetched. The handoff instead proves catch-up against the source:

1. The operator reads the standby's GTID_EXECUTED, then the active site's while it is still writable. A standby holding transactions the active site lacks is refused here (maintenance handoff refused; candidate has transactions the source lacks): promoting it would make that history authoritative, which is how an install already damaged by issue #202 would lose its newer writes. It then waits up to 30s for the standby to contain the active site's set. A standby that cannot catch up is refused here too, before any write is paused; the log shows maintenance handoff refused; source not fenced.
2. It fences the active site with super_read_only=ON (a failed fence refuses the handoff), kills application connections, and reads GTID_EXECUTED again. Nothing can be added to that set now.
3. It waits for the standby's GTID_EXECUTED to contain the fenced set, then promotes the standby. Steps 2 and 3 share one 30s budget that starts at the fence, and every probe in them is bounded by it. Writes are refused for that budget plus the promotion itself or, on abort, up to 10s to unfence the active site. Because of step 1 the fenced phase is normally sub-second.
4. Promotion runs on one pinned connection to the standby: STOP REPLICA, a re-check that GTID_EXECUTED equals the fenced set (nothing missing and nothing the active site lacks), RESET REPLICA ALL, the same re-check on the recorded promotion GTID, then clearing the read-only flags. Extra transactions at either re-check abort the handoff like a missing one: the standby's replication is restarted, the active site is unfenced, and writes are never enabled on the standby. The connection cannot silently reconnect, so the server that passed the proof is the one made writable; if the standby pod is replaced or the connection drops, the next statement fails and the handoff aborts. If the abort comes after RESET REPLICA ALL may have run, the operator re-creates the standby's replication channel to the active site and restarts it.

Both waits also probe the active site. If it stops answering for about 10s, the handoff ends at once, so the emergency failover that an ordered update holds off can act on the lost primary instead of waiting out the budget.

If the fenced phase runs out of budget, the standby's applier reports an error, a GTID set cannot be read or parsed, the standby no longer holds the fenced set at promotion, or the active site stops answering, the operator clears both super_read_only and read_only on the active site, leaves the standby a read-only replica, and ends the update. The active site's drift stays queued, so the handoff is retried on a later reconcile. Look for maintenance handoff refused; source not fenced (refused before the fence) or maintenance handoff aborted; source unfenced (aborted after it) in the operator log (see the log schema).

One failure is not an abort: the standby's final read_only=OFF returns an error after it may have applied. The active site then stays fenced, because the standby may already accept writes, and the update ends with ordered update failed (the error ends (source left fenced: the candidate may already accept writes)). Before reporting it, the operator reads the standby's read_only on a pooled connection, up to three times. If the standby answers writable, the handoff happened: the operator logs ordered update: handoff promotion returned an error but the standby is writable; recording the handoff and records it as a promotion (the lastFailover record with its time, target and promotionGtidExecuted, the anti-flap cooldown and DNS). If it cannot read the standby, it logs ordered update: could not read the standby's read_only after a failed handoff promotion, records nothing, and the next topology poll observes the standby. A standby that answers read-only is not recorded either. In every case the old active site is not rolled.

After the handoff, the operator updates the old active site and repoints it at the new primary. Updating it replaces its pod, and mysqld comes back with read_only only, so the operator first fences it again with super_read_only=ON (a failed fence refuses the repoint). It then compares the two GTID_EXECUTED sets once more before CHANGE REPLICATION SOURCE. The handoff already guarantees that the new primary holds everything the old active committed. If the old active nonetheless holds transactions the new primary lacks, or either set cannot be read, the operator does not repoint it. Replicating from the new primary would leave those transactions as errant GTIDs on a replica whose threads look healthy. The replica GTID audit would report it only after the update ends, and until then it would count as a clean replica. Instead the old active stays fenced with no replication channel, and the update ends with ordered update failed. Old-primary recovery then picks the site up. It either rejoins the site as a replica or, if the divergence is real, reports status.sites[].divergentGtid with divergenceDetectedBy=OldPrimaryRecovery and blocks so the site can be recloned. An old active that came back on an empty datadir is the exception: its set holds only server-init transactions under a new server_uuid, so the update refuses it the same way, but recovery treats it as empty and leaves it to auto-clone without reporting a divergentGtid.

For groups with more than two sites, every drifted non-active follower is updated sequentially and must be read-only with a direct healthy source before and after restart. If the active site has no drift, the rollout completes without failover; this is the normal reader-only configuration path. If the active site is drifted, only a healthy PrimaryCandidate standby may receive the handoff. A reader or DisasterRecovery follower is never promoted to facilitate an update, and failed or unprocessed drift remains queued for a later reconcile.

A standby that is mid-keyring-rotation (UnsealReason=Rotation) or still pending its post-restore reclone is not a handoff target. The operator re-checks this, together with the divergence report below, when it picks the standby rather than relying on what it saw when the update was planned, so a rotation stamped while followers were rolling still stops the handoff. If no eligible standby remains, the update ends with ordered update failed naming the reason, before anything is fenced. Conversely, a bloodraven.shipstream.io/rotate-keyring request is refused while an ordered update is pending or running; that decision is made against the operator's live update state, not only status.updatePhase.

A standby with a divergence report (recoveryState=RecoveryBlocked, see Divergent replicas) is not a handoff target either. When it is the only candidate, drifted followers are still updated, but the active site's update stalls without fencing anything: the update fails with <site> is divergent (N transactions the primary lacks); reclone or reconcile before the active site can be updated, and the operator logs ordered update: active-site update stalled; standby is divergent every 30s while Degraded=DivergentTransactions names the set. The stall is intentional and lasts until the standby is recloned or the primary is made to contain the set; the update then resumes on its own.

Every rolled site must also have a Ready pod, not only healthy MySQL. The operator reaches MySQL through each site's -internal Service, which publishes not-ready addresses. MySQL can therefore answer, and replicate, while the pod is out of every application Service, for example because the new pod template's sidecar cannot start, which also leaves the site without self-fencing. MySQL health alone would let the update hand the active role to such a site and then roll the old active into the same state.

A rolled site therefore counts as updated only when, within the same 5 minute budget as the replication wait, its Deployment has rolled out the new template and that template's pod has been Ready (every container passing its readiness probe) continuously for 30 seconds. A pod that is Ready at the moment of a check is not enough: a crash-looping container passes its probe between crashes. The 30 seconds run from the later of the pod's last transition to Ready and the start of its newest container run, native sidecar init containers included, so a container restart starts the count again even when the pod's Ready condition did not catch it. Every rolled site therefore takes at least 30 seconds. A replaced pod that is still Ready while it terminates is never mistaken for the new one.

Both times are recorded by the node and compared with the operator's clock. A node clock ahead of the operator's delays the verdict by the difference; one behind it shortens the 30 seconds by the difference.

Before it takes another site out of service (the next follower, or the active site's handoff), the operator checks again that every site already running the new template has a pod Ready for 30 seconds, including the site it just rolled and a site an earlier attempt rolled that no longer shows drift. A template that breaks pods stops at the first site it broke, and a standby whose pod is not Ready is never handed the active role. While the operator waits for a pod it keeps probing the replication source, so a primary lost during that wait still ends the update after about 10 seconds.

When the update stops on a pod:

• The Updating condition stays True, with reason OrderedUpdateStalled: the update is still in progress, stopped on that site. The message names the site, the pod and why it is not Ready, for example sidecar not ready: crash looping, last exit code 1 (Error). A container that has restarted is reported in those words in every phase of its crash loop (waiting out its back-off, running again, Ready again for less than 30 seconds, terminated again), so while the cause stays the same the message does not change from one retry to the next. A pod that has been Ready for less than 30 seconds with no recent container restart reads pod Ready for less than 30s. A Warning Event OrderedUpdateStalled carries the same text, once per stall, and the operator logs ordered update: stalled; site pod not Ready.
• Nothing else is rolled or handed off. The active site keeps serving, and the remaining drift stays queued.
• The update retries every 30s and resumes once the pod has been Ready for 30 seconds. If no site is left to roll, the operator checks the stalled pod on the same cadence and clears the condition by the same rule, so a crash-looping pod caught between crashes does not clear it.

Fix whatever keeps the pod from starting (the container logs and kubectl describe pod name it). A spec change that repairs the template makes the broken site drift again, and the update rolls it like any other site.

Automatic cross-site actions are suppressed while an update runs, because the site being rolled looks unreachable. That suppression never outlasts the primary: if the replication source stops answering while a rolled site is catching up (an updated follower waiting on the active primary, or the old active waiting on the primary it was just handed to), the operator abandons the wait after roughly 10 seconds of consecutive failed probes and ends the update. The suppressed failover or promotion-refusal evaluation then runs on the next poll instead of waiting out the 5 minute catch-up timeout.

Without OrderedUpdate, both sites are updated simultaneously, which may cause brief downtime if both pods restart at the same time.

For MySQL image changes, see the Upgrade and version-skew policy. The replica-first ordering above is the MySQL-required direction for a rolling version upgrade.
