CRD Reference

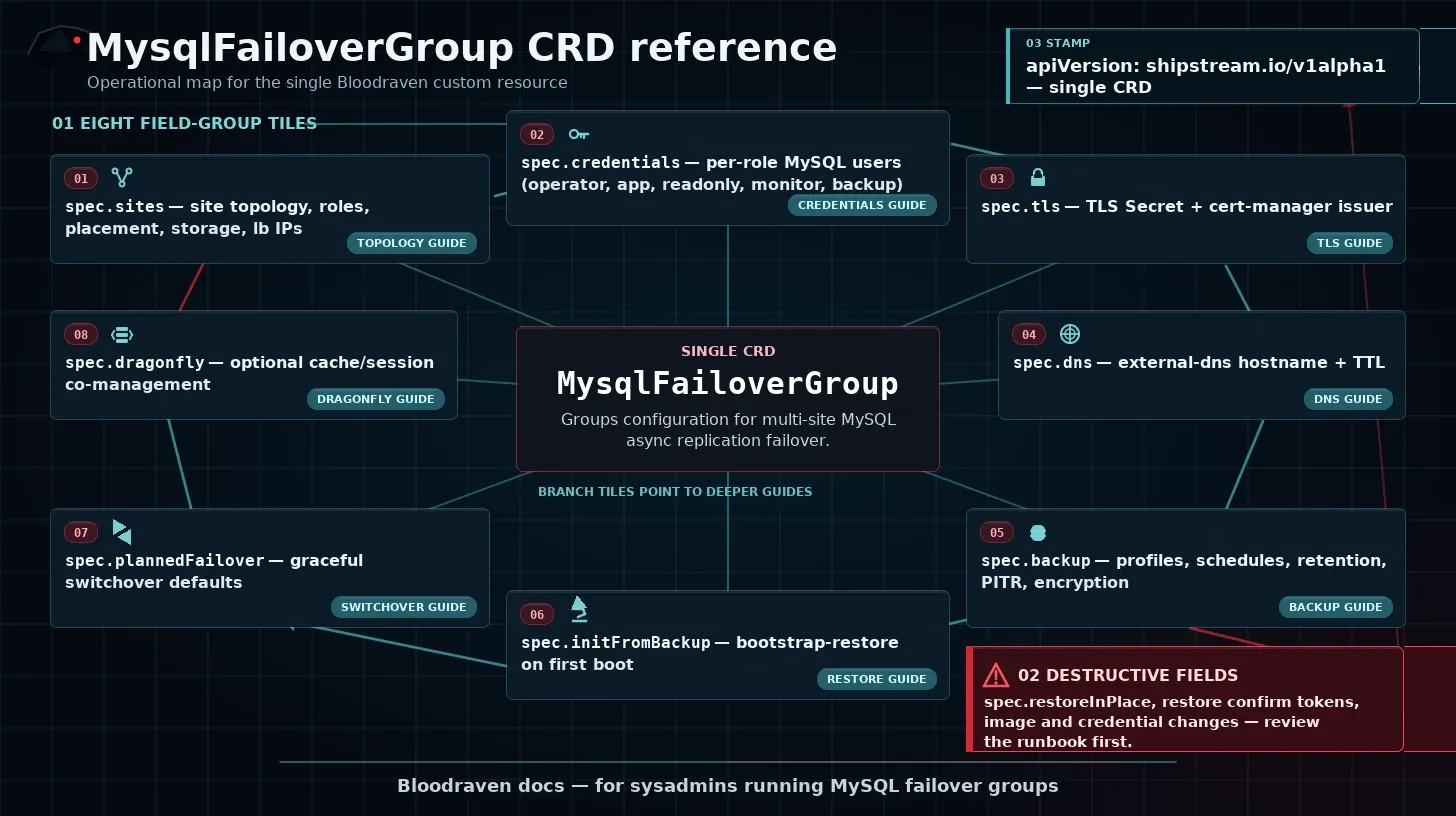

crd reference infographic

Complete reference for Bloodraven custom resources (shipstream.io/v1alpha1).

CRDs at a glance

Kind	Short name	Scope	Description
`MysqlFailoverGroup`	`mfg`	Namespaced	Core resource. Declares a multi-site MySQL HA cluster with automatic failover.
`MysqlBackup`	`mb`	Namespaced	One backup run. Created ad-hoc or by a schedule CronJob. Tracks phase, location, GTID, and binlog coordinates.
`MysqlBackupVerification`	`mbv`	Namespaced	Periodic restore-of-latest-backup into a throwaway mysqld to prove a backup loads cleanly. See Backup verification.
`MysqlStandbyCluster`	`msc`	Namespaced	Phase 1 of WISHLIST #7. Passive DR relationship descriptor: lives on the DR cluster, continuously monitors the source archive bucket, and stamps readiness conditions. See Multi-cluster DR.

`MysqlFailoverGroup`

Complete reference for the MysqlFailoverGroup custom resource (shipstream.io/v1alpha1).

Common fields quick reference

Field	Use most often for	Guide
`spec.sites`	Site topology, placement, storage, LB IPs	Placement Contract
`spec.credentials`	Per-role MySQL users	Credentials And TLS
`spec.tls`	MySQL TLS Secret and issuer	Credentials And TLS
`spec.dns`	external-dns hostname and TTL	Production Install
`spec.backup`	Backup profiles, schedules, PITR	Backup Overview
`spec.initFromBackup`	Bootstrap restore into a new group	Backup And Restore
`spec.plannedFailover`	Defaults for planned failover API	Planned Failover
`spec.dragonfly`	Optional Dragonfly cache/session co-management	App Integration

Destructive and high-risk fieldsReview runbooks before changing spec.restoreInPlace, restore-related confirm tokens, reclone controls, and any field that changes spec.sites, spec.credentials, spec.tls, or MySQL images. Restore and reclone operations can replace data; image and credential changes can trigger restarts or failed reconnects.

Spec

Top-level fields

Field	Type	Required	Default	Description
`image`	string	No	`mysql:9.7`	MySQL container image
`sidecarImage`	string	No	`ghcr.io/shipstream/bloodraven-sidecar:0.9.1`	Bloodraven sidecar container image
`sites`	SiteSpec	Yes	--	Site definitions. At least two sites with `role: primary-candidate`; additional `dr-only` and `read-only` followers may be appended. MinItems=2, MaxItems=16.
`secretName`	string	No	--	(Legacy) Name of the Secret containing MySQL credentials (key: `dsn`). Mutually exclusive with `credentials`.
`credentials`	CredentialsSpec	No	--	Per-role MySQL credential management. The operator creates MySQL users with role-appropriate privileges and rotates passwords when secrets change. Mutually exclusive with `secretName`.
`dns`	DNSSpec	Yes	--	DNS configuration for traffic steering via external-dns
`tls`	TLSSpec	No	--	TLS configuration (cert-manager integration)
`pollInterval`	duration	No	`2s`	Base interval for polling each MySQL instance. After a site reaches `failureThreshold` and continues failing, the shared group cadence backs off exponentially to a 30-second cap.
`failureThreshold`	int	No	`3`	Consecutive failed polls before a site is marked unreachable
`recoveryThreshold`	int	No	`2`	Consecutive successful polls before a site is marked writable
`failoverCooldown`	duration	No	`5m`	Minimum time between automatic failovers
`connectionDrainTimeout`	duration	No	`30s`	Maximum operator-side retry window for evicting stale application sessions from a fenced former primary after promotion
`splitBrainPolicy`	SplitBrainPolicySpec	No	--	Opt-in automated resolution when multiple sites are writable and the operator has no prior failover history. See SplitBrainPolicySpec.
`sidecar`	SidecarSpec	No	--	Sidecar-container knobs (lease timeout, peer check interval, Bloodraven aux endpoint).
`sidecarResources`	ResourceRequirements	No	--	Compute resources (requests/limits) for the sidecar container
`terminationGracePeriodSeconds`	int	No	`60`	Grace period for MySQL container shutdown.
`mysqlConf`	mapstringstring	No	--	MySQL configuration overrides merged into the generated `my.cnf`. Option keys may use underscores or hyphens; Bloodraven normalizes underscores to hyphens before merging. Bloodraven defaults `log-bin-trust-function-creators=1` so replicated function DDL is accepted consistently at every site. Changes trigger an ordered rolling restart when `updateStrategy: OrderedUpdate` is set.
`replication`	ReplicationSpec	No	--	Replication health settings
`updateStrategy`	string	No	`OrderedUpdate`	Update strategy (`OrderedUpdate` or `Recreate`).
`cloneTimeout`	int	No	`3600`	Timeout in seconds for initial data clone operations
`podLabels`	mapstringstring	No	--	Additional labels applied to every MySQL pod. Operator labels take precedence on conflict.
`podAnnotations`	mapstringstring	No	--	Additional annotations applied to every MySQL pod. Operator annotations take precedence on conflict.
`serviceTemplate`	ServiceTemplate	No	--	Defaults the client-facing site, primary, and replicas Services. Internal per-site Services ignore this template and remain ClusterIP.
`extraContainers`	Container	No	--	Additional containers injected into every MySQL pod (e.g. exporters)
`extraInitContainers`	Container	No	--	Additional init containers injected after the operator's built-in init container
`backup`	BackupSpec	No	--	Backup configuration (profiles, schedules, retry, PITR, encryption, security contexts). See BackupSpec.
`initFromBackup`	InitFromBackupSpec	No	--	One-shot restore-on-first-boot before normal bootstrap completes. See InitFromBackupSpec.
`restoreInPlace`	RestoreInPlaceSpec	No	--	Re-triggerable destructive restore against the active primary. Bumping `confirm` to a newer RFC 3339 timestamp re-arms. See RestoreInPlaceSpec.
`plannedFailover`	PlannedFailoverSpec	No	--	Cluster-wide defaults for the graceful planned-failover API (triggered via `bloodraven.shipstream.io/planned-failover=<site>`).
`dragonfly`	DragonflySpec	No	--	Optional per-site Dragonfly cache/session co-management. When enabled, the operator creates one Dragonfly StatefulSet per site, an active Redis-compatible Service, replication wiring, promotion status, and optional snapshot-restore upgrade support. See DragonflySpec.
`encryptionAtRest`	EncryptionAtRestSpec	No	--	MySQL InnoDB data-at-rest encryption via the GPL `component_keyring_file` keyring component, with the live keyring projected from a per-site Secret so no key material lands on the data PVC or a node disk. Requires `spec.tls`. See EncryptionAtRestSpec and Data-at-rest encryption.

SiteSpec

Each entry in spec.sites defines one site in the failover group.

Field	Type	Required	Default	Description
`name`	string	Yes	--	Unique site identifier (e.g. `iad`, `pdx`). Used in Service names and labels. MaxLength=253.
`role`	string	No	`primary-candidate`	`primary-candidate` can be promoted; `dr-only` and `read-only` are never promoted. A reader provides a health-gated site-specific read pool. At least two `primary-candidate` sites are required.
`zone`	string	Yes	--	Availability zone or region for pod scheduling
`taintNodeSelector`	mapstringstring	Conditional	--	Required and non-empty for `primary-candidate` and `dr-only`; optional for `read-only`. Selects nodes that receive this group's `db-readonly` taint. Accepted but ignored on readers, which never cause taint operations.
`lbIP`	string	Conditional	--	Required and non-empty for `primary-candidate` and `dr-only`; optional for `read-only`. Used for active-primary DNS steering. Accepted but ignored on readers, which are never DNS targets.
`storage`	StorageSpec	Yes	--	Persistent storage configuration for this site
`resources`	ResourceRequirements	No	--	Compute resources (requests/limits) for the MySQL container at this site
`mysqlConf`	mapstringstring	No	--	Site-specific MySQL options applied after normalized group overrides. Changing this map rolls only affected sites unless other drift is pending.
`serviceTemplate`	SiteServiceTemplate	No	--	Scalar and annotation overrides for this site's client-facing MySQL Service. Does not affect sibling, primary, replicas, or internal Services.

Reader manifests may retain legacy lbIP and taintNodeSelector values for compatibility, but Bloodraven ignores them. Changing a reader to primary-candidate or dr-only is rejected until both fields are present. A reader does not satisfy the two-candidate minimum and cannot appear in splitBrainPolicy.sitePriorities.

Admission combinations

Combination	Admitted?
Two `primary-candidate` sites, each with non-empty `lbIP` and `taintNodeSelector`	Yes
Two candidates plus a reader with both placement fields omitted	Yes
Reader with either or both legacy placement fields supplied	Yes; supplied values are ignored
Omitted/default role, explicit candidate, or `dr-only` with either placement field omitted	No
Fewer than two candidates, or a reader/DR site in `sitePriorities`	No
`externalTrafficPolicy` on an effective `ClusterIP` Service	No
Site `nodePort` on an effective `ClusterIP` Service	No
ETP on `NodePort`/`LoadBalancer`, or site NodePort in 1-65535 on those types	Yes; Kubernetes then applies its cluster-specific NodePort range

StorageSpec

Field	Type	Required	Description
`storageClassName`	string	Yes	Kubernetes StorageClass name
`size`	string	Yes	Storage request size (e.g. `100Gi`)

DNSSpec

Field	Type	Required	Description
`hostname`	string	Yes	The DNS hostname managed by Bloodraven (e.g. `orders.az.example.com`). On failover, the operator creates/updates a `DNSEndpoint` CR with an A record pointing this hostname to the active site's `lbIP`. Apps should CNAME their DNS to this hostname.
`ttl`	int	No	TTL in seconds for the DNS A record (default: `60`)

TLSSpec

Field	Type	Required	Description
`issuerRef`	IssuerRef	Yes	cert-manager issuer reference
`secretName`	string	Yes	Name of the TLS Secret to create

IssuerRef

Field	Type	Required	Description
`name`	string	Yes	Issuer or ClusterIssuer name
`kind`	string	Yes	`Issuer` or `ClusterIssuer`

ReplicationSpec

Field	Type	Required	Description
`maxLagSeconds`	int	No	Maximum acceptable replication lag in seconds before the replica is considered unhealthy
`readOnlyMaxLagSeconds`	int	No	Maximum lag for a reader's client endpoint. Omitted inherits `maxLagSeconds` (including its 300-second effective fallback); explicit `0` requires zero reported lag.

SplitBrainPolicySpec

Opt-in configuration for how the operator should behave when more than one site is simultaneously writable and the operator cannot infer a winner from prior failover history. See Split-brain resolution for a full description of semantics and tradeoffs.

Field	Type	Required	Description
`sitePriorities`	string	No	Ordered list of `primary-candidate` site names. The operator walks the list and promotes the first entry that is currently writable; every other writable site is fenced. Empty or unset falls back to manual resolution (alert only). MaxItems=16. Entries must reference sites with role `primary-candidate`.

ServiceTemplate

Field	Type	Required	Description
`type`	string	No	Kubernetes Service type: `ClusterIP` (default), `LoadBalancer`, or `NodePort`
`externalTrafficPolicy`	string	No	`Cluster` or `Local`. Valid only when the effective Service type is `NodePort` or `LoadBalancer`. Applied to site, primary, and replicas Services when supported.
`annotations`	mapstringstring	No	Default annotations for client-facing site, primary, and replicas Services. Not applied to internal Services.

SiteServiceTemplate (`spec.sites[].serviceTemplate`)

Field	Type	Required	Description
`type`	string	No	Site Service override: `ClusterIP`, `LoadBalancer`, or `NodePort`. Omitted inherits the group type.
`externalTrafficPolicy`	string	No	Site override: `Cluster` or `Local`. Legal only when the effective site type is `NodePort` or `LoadBalancer`.
`nodePort`	int	No	Requested NodePort for this site's named `mysql` port, range 1-65535. Legal only for effective type `NodePort` or `LoadBalancer`; cluster admission enforces its configured allocation range.
`annotations`	mapstringstring	No	Merged over group annotations for this site only; site keys win.

The operator preserves Kubernetes-assigned Service identity and compatible allocated NodePorts across reconciles and external-type transitions. Moving a site Service to ClusterIP clears external-only fields. The sidecar port is never exposed through a client Service or assigned a NodePort.

CredentialsSpec

Exactly one of secretName or credentials must be set. When credentials is used, the operator manages MySQL users on the primary — creating them during first boot via an init script and updating passwords via ALTER USER when the referenced Secrets change.

Field	Type	Required	Description
`operatorSecret`	string	Yes	Secret for operator and sidecar connections. Required keys: `username`, `password`, `MYSQL_ROOT_PASSWORD`. Optional: `MYSQL_REPLICATION_USER`, `MYSQL_REPLICATION_PASSWORD` (default to operator credentials). Grants: `ALL PRIVILEGES WITH GRANT OPTION`.
`appSecret`	string	No	Secret for application read-write connections. Keys: `username`, `password`. Grants: `ALL PRIVILEGES` (no `GRANT OPTION`, no `SUPER`).
`readOnlySecret`	string	No	Secret for application read-only connections. Keys: `username`, `password`. Grants: `SELECT`, `SHOW VIEW`, `SHOW DATABASES`, `PROCESS`.
`monitorSecret`	string	No	Secret for Prometheus exporter connections. Keys: `username`, `password`. Grants: `PROCESS`, `REPLICATION CLIENT`, `SELECT` on `performance_schema`.
`backupSecret`	string	No	Secret for backup/restore connections. Keys: `username`, `password`. Grants: `SELECT`, `LOCK TABLES`, `SHOW VIEW`, `EVENT`, `TRIGGER`, `RELOAD`, `BACKUP_ADMIN`, `REPLICATION CLIENT`.

BackupSpec

Top-level backup configuration, embedded as spec.backup. Omitting the field disables backups for this failover group.

Field	Type	Required	Default	Description
`image`	string	No	`container-registry.oracle.com/mysql/community-server:9.7`	Image containing `mysqlsh` used for dump / load.
`imagePullSecrets`	LocalObjectReference	No	--	Pull secrets for the backup image.
`profiles`	BackupProfile	No	--	Reusable named backup configurations referenced by schedules and `MysqlBackup` CRs.
`schedules`	BackupSchedule	No	--	Cron-driven recurring backups; each references a profile by name. Each entry becomes a Kubernetes CronJob owned by this failover group.
`maxLagSecondsForSource`	int	No	`300`	Threshold above which the backup reconciler falls back from replica-first source selection to the primary.
`resources`	ResourceRequirements	No	--	Resources for the backup Job's mysqlsh container.
`activeDeadlineSeconds`	int	No	`7200`	Wall-clock cap on a single backup Job.
`backoffLimit`	int	No	`2`	Job-level backoffLimit applied to backup Jobs.
`retry`	BackupRetrySpec	No	--	Operator-level retries for Failed scheduled MysqlBackup CRs. Independent of Job `backoffLimit`.
`pitr`	PITRSpec	No	--	Continuous binlog archival for point-in-time recovery.
`podSecurityContext`	PodSecurityContext	No	--	Overrides default hardened pod security context merged onto the defaults.
`containerSecurityContext`	SecurityContext	No	--	Overrides default hardened container security context.
`stagingVolumeSizeLimit`	Quantity	No	--	Cap on the plaintext-staging `emptyDir` used by backup / restore / verify Jobs. Unset falls through to the node's ephemeral-storage limit; set on shared clusters to keep a large dump from triggering `DiskPressure` (AUDIT H6).

BackupProfile (`spec.backup.profiles[]`)

Field	Type	Required	Default	Description
`name`	string	Yes	--	Profile identifier, `[a-z0-9]([-a-z0-9]*[a-z0-9])?`.
`storage`	BackupStorage	Yes	--	Tagged union: `type: S3` + `s3` block, or `type: PVC` + `pvc` block.
`dump`	DumpOptions	No	--	`util.dumpInstance()` tuning (threads, chunk size, compression, schema filters, consistent locking, OCIMDS checks).
`retention`	int	No	`7`	Legacy shorthand: max number of successful MysqlBackup CRs to keep. Ignored when `retentionPolicy` is set.
`retentionPolicy`	RetentionPolicy	No	--	Structured retention: `count`, `maxAgeDays`, `minKeep` floor, `maxFailedKeep` cap. Replaces the `retention` shorthand.
`verification`	VerificationSpec	No	--	Opt-in periodic restore-of-this-profile's-latest-backup into a throwaway MySQL instance; renders a CronJob when `enabled: true`.
`encryption`	BackupEncryptionSpec	No	--	Enables client-side envelope encryption (AES-256-GCM + HKDF-SHA256) for every dump file and, when this profile is also used for PITR, every archived binlog. Passphrase is owned by the operator — rotating or deleting the Secret renders existing ciphertexts unrecoverable. See Backup encryption.

BackupEncryptionSpec

Field	Type	Required	Default	Description
`algorithm`	string	No	`AES-256-GCM`	Encryption algorithm. Only `AES-256-GCM` is currently supported.
`passphraseSecret`	PassphraseSecretRef	Yes	--	Reference to a Secret in the same namespace holding the passphrase. See PassphraseSecretRef.

PassphraseSecretRef

Reused by BackupEncryptionSpec, BackupDecryptionSpec, spec.initFromBackup.decryption, and spec.restoreInPlace.decryption.

Field	Type	Required	Default	Description
`name`	string	Yes	--	Name of the Secret.
`key`	string	No	`passphrase`	Key within the Secret that holds the passphrase bytes. Leading and trailing whitespace is stripped when the passphrase is read.

BackupDecryptionSpec

Used on spec.initFromBackup.decryption and spec.restoreInPlace.decryption to supply the passphrase that decrypts an encrypted backup. When the source is a same-group mysqlBackupRef and the field is omitted, the operator falls back to the profile's own passphraseSecret.

Field	Type	Required	Description
`passphraseSecret`	PassphraseSecretRef	Yes	Secret holding the passphrase used at backup time. Rotating to a new value does not re-wrap existing ciphertext — it will simply fail to decrypt.

RetentionPolicy

Fields are independently optional; a successful MysqlBackup is kept iff any enabled check says keep. minKeep is the safety floor that prevents a retention sweep from wiping the last good backup after a long outage of failing attempts.

Field	Type	Required	Default	Description
`count`	int	No	`0`	Max number of successful CRs to keep. 0 disables count-based pruning.
`maxAgeDays`	int	No	`0`	Max age in days of a successful CR before it becomes eligible for pruning. 0 disables age-based pruning.
`minKeep`	int	No	`1`	This many newest successful CRs are always kept, regardless of the other knobs.
`maxFailedKeep`	int	No	`10`	Cap on the Failed bucket, independent of the success retention policy.

PITRSpec (`spec.backup.pitr`)

Enables continuous binary-log archival so restores can target an arbitrary stopDatetime on top of any retained full dump. See Backup and restore → Point-in-time recovery for the end-to-end story.

Field	Type	Required	Description
`enabled`	bool	No	Turns archival on. Omitting the whole block is equivalent to `false`.
`profileName`	string	Yes when enabled	Name of a `spec.backup.profiles[]` entry. Binlog objects and per-site manifests live under a `binlogs/` subprefix inside that profile's storage.
`maxBinlogSize`	string	No	Passed to MySQL as `max_binlog_size`. Controls rotation cadence (and therefore the RPO gap). Default `"100M"`.
`archivePollInterval`	duration	No	Belt-and-suspenders scan cadence alongside inotify. Default `"60s"`.

InitFromBackupSpec (`spec.initFromBackup`)

One-shot restore-on-first-boot. The operator runs a restore Job against the initial primary site before normal bootstrap is considered complete. Once status.restore.phase == Succeeded, subsequent reconciles skip the restore even if this field is still set.

Field	Type	Required	Description
`source`	InitFromBackupSource	Yes	Tagged reference: exactly one of `mysqlBackupRef`, `s3`, or `pvc`.
`loadOptions`	LoadOptions	No	`util.loadDump()` tuning (threads, resetProgress, skipBinlog, loadIndexes, schema filters).
`pointInTime`	PointInTimeSpec	No	Post-load binlog replay to a specific target timestamp. Requires the source group to have had `spec.backup.pitr.enabled=true` at backup time.
`decryption`	BackupDecryptionSpec	No	Passphrase to decrypt the source backup and any replayed binlogs. For same-group `mysqlBackupRef`, the operator falls back to the profile's own passphrase when omitted.

RestoreInPlaceSpec (`spec.restoreInPlace`)

Re-triggerable destructive restore against the currently-active primary. Unlike initFromBackup (one-shot, greenfield), this field is meant to be edited repeatedly: bumping confirm to a newer RFC 3339 timestamp re-arms another restore. See RestoreInPlaceSpec in the source for full semantics (full-instance vs. per-schema restores).

Field	Type	Required	Description
`confirm`	string	Yes	Anti-fat-finger token. Must be an RFC 3339 timestamp strictly greater than `status.restoreInPlace.confirmTokenUsed`.
`source`	InitFromBackupSource	Yes	Tagged reference: one of `mysqlBackupRef`, `s3`, or `pvc`.
`loadOptions`	LoadOptions	No	`util.loadDump()` tuning. For per-schema restores, `skipBinlog` is force-set to `false` so the DROP+load replicates.
`pointInTime`	PointInTimeSpec	No	Post-load binlog replay.
`decryption`	BackupDecryptionSpec	No	Same semantics as `InitFromBackupSpec.Decryption`.

PointInTimeSpec (`spec.initFromBackup.pointInTime`)

Requests binlog replay on top of the loaded dump. Requires the source failover group to have had spec.backup.pitr.enabled=true at the time of the full dump — otherwise there is no archive to replay.

Field	Type	Required	Description
`stopDatetime`	string	Yes	Replay target. Accepts RFC 3339 (`2026-04-15T09:30:00Z`) or MySQL's native form (`2026-04-15 09:30:00`).
`excludeGtids`	string	No	Forwarded verbatim as `mysqlbinlog --exclude-gtids=...` to surgically skip known-bad transactions while replaying everything else.

DragonflySpec (`spec.dragonfly`)

Optional cache/session sidekick management. Omitting this field or setting enabled: false preserves MySQL-only behavior and removes previously managed Dragonfly resources.

Field	Type	Required	Default	Description
`enabled`	bool	No	`false`	Creates and manages one Dragonfly StatefulSet per site when true.
`image`	string	Yes when enabled	--	Pinned Dragonfly image. `:latest` is rejected. Use Dragonfly `v1.38.0+`.
`port`	int	No	`6379`	Redis-compatible client port.
`adminPort`	int	No	`9999`	Admin/control port used by the operator.
`maxMemoryMb`	int	No	--	Renders Dragonfly `--maxmemory=<value>mb` when non-zero.
`proactorThreads`	int	No	--	Renders Dragonfly `--proactor_threads=<value>` when non-zero.
`args`	string	No	--	Extra Dragonfly args. Operator-owned flags such as `--port`, `--admin_port`, `--requirepass`, `--dir`, S3 flags, and `--break_replication_on_master_restart` are filtered out.
`auth`	DragonflyAuthSpec	No	--	Secret reference for the Dragonfly password. The operator renders `--requirepass` and authenticates its own connections.
`resources`	ResourceRequirements	No	--	Compute resources for each Dragonfly container.
`plannedFailover`	DragonflyPlannedFailoverSpec	No	`{maxSyncWait: 30s, onSyncTimeout: proceed}`	Planned-failover sync and timeout behavior.
`snapshot`	DragonflySnapshotSpec	No	--	Native Dragonfly snapshot directory and optional S3-compatible settings for planned snapshot-restore upgrades.

DragonflyAuthSpec

Field	Type	Required	Default	Description
`secretName`	string	Yes	--	Secret containing the Dragonfly password.
`passwordKey`	string	No	`password`	Secret key containing the password.

DragonflyPlannedFailoverSpec

Field	Type	Required	Default	Description
`maxSyncWait`	duration	No	`30s`	Maximum time to wait for target Dragonfly replica catch-up. Also used as the `REPLTAKEOVER` timeout.
`onSyncTimeout`	string	No	`proceed`	`proceed` continues MySQL promotion and records `sessionsPreserved=false`; `fail` rolls back before MySQL promotion.

DragonflySnapshotSpec

Field	Type	Required	Description
`dir`	string	No	Passed to Dragonfly as `--dir`. Use `s3://bucket[/prefix]` for S3-compatible snapshot/restore support.
`serviceAccountName`	string	No	ServiceAccount assigned to Dragonfly pods for cloud IAM access.
`credentialsSecretName`	string	No	Secret projected as AWS credential environment variables for S3-compatible snapshot access.
`s3Endpoint`	string	No	S3-compatible endpoint passed as `--s3_endpoint`.
`s3UseHTTPS`	bool	No	Passed as `--s3_use_https` when set.
`s3SignPayload`	bool	No	Passed as `--s3_sign_payload` when set.

EncryptionAtRestSpec (`spec.encryptionAtRest`)

Requires spec.tls: MySQL mandates a secure connection to clone encrypted data and Bloodraven bootstraps every replica with CLONE INSTANCE. The CRD rejects enabled: true without it.

Field	Type	Required	Default	Description
`enabled`	bool	Yes	`false`	Turn on data-at-rest encryption for every site. Refused on a group that is already serving unless the `bloodraven.shipstream.io/encryption-adopt=confirm` annotation is set.
`coverage`	EncryptionCoverageSpec	No	all `true`	Which encryption settings the operator enforces. See EncryptionCoverageSpec.
`keyring`	KeyringSpec	No	--	Keyring component paths and escrow lifecycle. See KeyringSpec.

EncryptionCoverageSpec

Every field defaults to true. These are operator-owned once encryption is enabled: a spec.mysqlConf entry naming the same option is ignored, so a stray override cannot silently downgrade a site. Turning one off narrows the security claim.

Field	Type	Default	MySQL setting
`tables`	bool	`true`	`default_table_encryption`. Applies to schemas and tables created afterwards; does not rewrite existing data.
`privilegeCheck`	bool	`true`	`table_encryption_privilege_check`. Stops application users opting individual tables out of encryption.
`redoLog`	bool	`true`	`innodb_redo_log_encrypt`
`undoLog`	bool	`true`	`innodb_undo_log_encrypt`
`binaryLog`	bool	`true`	`binlog_encryption` (covers relay logs on replicas too)
`systemTablespace`	bool	`true`	`ALTER TABLESPACE mysql ENCRYPTION='Y'`, run once by the sidecar on the writable site. Not covered by `default_table_encryption`; without it the data dictionary (schema, table, and column names) stays readable on a stolen PVC.

KeyringSpec

mysqldDir and pluginDir are image-specific. The defaults match the official mysql:9.x images — MySQL only reads its global component manifest from the directory holding mysqld, and its global component config from plugin_dir, so a wrong value shows up as InnoDB refusing to start.

Field	Type	Default	Description
`dataFileDir`	string	`/run/mysql-keyring`	Keyring mount point. It must be outside the actual MySQL datadir. Admission rejects `/var/lib/mysql` and descendants; custom-image datadirs require manual verification.
`mysqldDir`	string	`/usr/sbin`	Directory containing the `mysqld` binary; `mysqld.my` is subPath-mounted here.
`pluginDir`	string	`/usr/lib64/mysql/plugin`	MySQL `plugin_dir`; `component_keyring_file.cnf` is subPath-mounted here.
`retainVersions`	int	`5`	Superseded escrow Secret versions kept per site (2--50). The version a site is currently sealed against is never pruned.
`escrowTimeoutSeconds`	int	`600`	How long before a site that has not escrowed its keyring is reported `Failed`. Minimum 30. The site stays unsealed and the operator keeps retrying either way.

Full example

apiVersion: shipstream.io/v1alpha1
kind: MysqlFailoverGroup
metadata:
  name: orders
spec:
  image: mysql:9.7
  sidecarImage: ghcr.io/shipstream/bloodraven-sidecar:0.9.1
  sites:
    - name: iad
      zone: us-east-1a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: iad
      lbIP: 10.0.1.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
      resources:
        requests:
          cpu: "2"
          memory: "16Gi"
        limits:
          cpu: "4"
          memory: "16Gi"
    - name: pdx
      zone: us-west-2a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: pdx
      lbIP: 10.0.2.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
      resources:
        requests:
          cpu: "2"
          memory: "16Gi"
        limits:
          cpu: "4"
          memory: "16Gi"
    - name: reader
      role: read-only
      zone: us-east-1b
      mysqlConf:
        innodb_buffer_pool_size: "4G"
      serviceTemplate:
        type: LoadBalancer
        externalTrafficPolicy: Local
        nodePort: 32006
        annotations:
          service.beta.kubernetes.io/aws-load-balancer-internal: "true"
      storage:
        storageClassName: fast-ssd
        size: 100Gi
  secretName: mysql-credentials
  sidecarResources:
    requests:
      cpu: "100m"
      memory: "64Mi"
    limits:
      cpu: "200m"
      memory: "128Mi"
  dns:
    hostname: orders.az.example.com
    ttl: 60
  tls:
    issuerRef:
      name: letsencrypt
      kind: ClusterIssuer
    secretName: mysql-tls
  pollInterval: 2s
  failureThreshold: 3
  recoveryThreshold: 2
  failoverCooldown: 5m
  mysqlConf:
    innodb_buffer_pool_size: "8G"
    max_connections: "500"
    innodb_flush_log_at_trx_commit: "1"
    sync_binlog: "1"
  replication:
    maxLagSeconds: 300
    readOnlyMaxLagSeconds: 30
  updateStrategy: OrderedUpdate
  dragonfly:
    enabled: true
    image: docker.dragonflydb.io/dragonflydb/dragonfly:v1.38.0
    plannedFailover:
      maxSyncWait: 30s
      onSyncTimeout: proceed
  cloneTimeout: 3600
  podLabels:
    cost-center: platform
  podAnnotations:
    prometheus.io/scrape: "true"
    prometheus.io/port: "9104"
  serviceTemplate:
    type: LoadBalancer
    externalTrafficPolicy: Local
    annotations:
      service.beta.kubernetes.io/aws-load-balancer-internal: "true"
  extraContainers:
    - name: mysqld-exporter
      image: prom/mysqld-exporter:latest
      env:
        - name: DATA_SOURCE_NAME
          valueFrom:
            secretKeyRef:
              name: mysql-monitor-creds
              key: dsn
      ports:
        - containerPort: 9104

Full example (credentials mode)

apiVersion: shipstream.io/v1alpha1
kind: MysqlFailoverGroup
metadata:
  name: orders
spec:
  image: mysql:9.7
  sidecarImage: ghcr.io/shipstream/bloodraven-sidecar:0.9.1
  sites:
    - name: iad
      zone: us-east-1a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: iad
      lbIP: 10.0.1.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
    - name: pdx
      zone: us-west-2a
      taintNodeSelector:
        shipstream.io/failover-group.orders: "true"
        shipstream.io/site.orders: pdx
      lbIP: 10.0.2.1
      storage:
        storageClassName: fast-ssd
        size: 100Gi
  credentials:
    operatorSecret: mysql-operator-creds
    appSecret: mysql-app-creds
    monitorSecret: mysql-monitor-creds
    backupSecret: mysql-backup-creds
  dns:
    hostname: orders.az.example.com
    ttl: 60

Each referenced Secret must contain username and password keys. The operator secret additionally requires MYSQL_ROOT_PASSWORD:

apiVersion: v1
kind: Secret
metadata:
  name: mysql-operator-creds
stringData:
  username: bloodraven
  password: <operator-password>
  MYSQL_ROOT_PASSWORD: <root-password>
---
apiVersion: v1
kind: Secret
metadata:
  name: mysql-app-creds
stringData:
  username: app
  password: <app-password>

Status

The operator writes the following status fields.

Top-level status

Field	Type	Description
`activeSite`	string	Name of the site currently serving as primary
`sites`	SiteStatus	Per-site status
`conditions`	Condition	Standard Kubernetes conditions
`lastFailover`	timestamp	When the last failover occurred
`lastFailoverTarget`	string	Which site was promoted in the last failover
`promotionGtidExecuted`	string	GTID set recorded on the candidate at the moment of the most recent promotion, before it began accepting writes. Used for data-loss accounting.
`updatePhase`	string	Current phase of an ordered update; empty when not updating.
`restore`	RestoreStatus	In-flight or completed `initFromBackup` restore (phase, JobName, targetSite, startTime, completionTime, message).
`restoreInPlace`	RestoreInPlaceStatus	In-flight or completed in-place restore (phase, JobName, targetSite, scope, confirmTokenUsed, startTime, completionTime, message). Mirrors the state machine described on RestoreInPlaceSpec.
`backupSchedules`	BackupScheduleStatus	Per-schedule rollup (cronJobName, lastScheduleTime, lastSuccessfulTime, lastBackupName, lastBackupPhase, lastSuccessfulBackupName, lastRetryAttempt, nextRetryTime).
`lastBackupTime`	timestamp	Completion time of the most recent successful MysqlBackup across all profiles, regardless of whether it was scheduled or on-demand.
`pitr`	PITRStatus	Summary of the continuous binlog archive, populated by the operator from periodic polls of each sidecar's `/archiver/status` endpoint. Present when `spec.backup.pitr.enabled=true`.
`plannedFailover`	PlannedFailoverStatus	Most-recent planned (admin-triggered) failover attempt. Retained until a newer annotation replaces it; how `kubectl describe` tells the story of a switchover after the fact.
`dragonfly`	DragonflyStatus	Observed Dragonfly subsystem state when `spec.dragonfly.enabled=true`: active site, phase, per-site roles, reachability, replication health, last promotion, and snapshot-upgrade status.
`encryptionAtRest`	EncryptionAtRestStatus	Observed data-at-rest encryption state when `spec.encryptionAtRest.enabled=true`: whether every site is sealed, and per-site keyring phase, escrow Secret/version/digest, and observed coverage. See EncryptionAtRestStatus.

SiteStatus

Field	Type	Description
`name`	string	Site identifier
`state`	string	Current state: `writable`, `read-only`, `unreachable`, or `unknown`
`lastSeen`	timestamp	Last time the operator successfully polled this site
`replicating`	bool	Whether this site is replicating from another site
`secondsBehindSource`	int	Replication lag in seconds (only set when replicating)
`gtidExecuted`	string	GTID set executed on this site
`sourceHost`	string	Source hostname reported by MySQL. Followers are expected to name the active primary's internal site Service.
`sourceConvergenceState`	string	`Converged`, `Pending`, or `Blocked`. Generic direct-source state for every follower; independent of old-primary recovery state.
`sourceConvergenceReason`	string	Stable reason: `DirectSource`, `SourceMismatch`, `ProbeFailed`, `MutationFailed`, or `GTIDDiverged`. Detailed errors remain in structured logs.
`recoveryState`	string	Old-primary recovery state: empty (no recovery needed), `RecoveryInProgress` (the operator is reconfiguring or waiting for the site to stabilize as a replica), or `RecoveryBlocked` (divergent transactions detected — trigger a reclone to recover)
`divergentGtid`	string	GTID set of transactions on this site that diverge from the current primary. Populated when `recoveryState` is `RecoveryBlocked`.
`divergentTransactionCount`	int	Number of divergent transactions. Populated when `recoveryState` is `RecoveryBlocked`.

Conditions

Type	Meaning
`Ready`	`True` when there is exactly one confirmed writable `primary-candidate` and every non-reader follower has healthy direct replication. Reader reachability, lag, threads, and source state do not change this group condition.
`Degraded`	`True` when core candidate/DR replication is broken or source-mismatched, lag exceeds `maxLagSeconds`, or a non-reader site is unreachable. Reader failures are excluded and remain visible per site and in metrics.
`RecoveryPending`	`True` while old-primary recovery is running (`RecoveryInProgress`) or when an old primary has divergent transactions (`DivergentTransactions`). Use the reclone annotation only for `DivergentTransactions`.
`Bootstrapping`	`True` when a clone operation is in progress (fresh-deploy, auto-clone, or reclone). Reason indicates the phase.
`EncryptionAtRestReady`	`True` when every site is sealed against a verified escrowed keyring. `False` with reason `KeyringNotSealed` while sites are bootstrapping, cloning, or rotating; `KeyringFailed` when a site could not escrow or its escrow Secret is missing or corrupt; `AdoptionRefused` when encryption was enabled on a group that is already serving.

EncryptionAtRestStatus

Field	Type	Description
`sealed`	bool	`True` only when every site is in the `Sealed` phase. This is the field to alert on -- `false` means at least one site is running with a writable keyring or failed to escrow.
`sites`	SiteEncryptionStatus	Per-site keyring lifecycle.
`observedGeneration`	int	CR generation the encryption subsystem last reconciled.

SiteEncryptionStatus

Field	Type	Description
`name`	string	Site identifier
`phase`	string	`Pending`, `Unsealed`, `Escrowed`, `Sealed`, or `Failed`. The normal sequence is `Pending -> Unsealed -> Escrowed -> Sealed`. `Escrowed` means the keyring is captured and verified and the pod is rolling onto the sealed rendering.
`unsealReason`	string	Why the site is unsealed: `Bootstrap`, `Clone`, or `Rotation`. Empty when sealed.
`keyringSecret`	string	Escrow Secret the site is sealed against (or seeded from while unsealed).
`keyringVersion`	int	Escrow version. Monotonic per site; each version is an immutable Secret.
`keyringDigest`	string	`sha256:<hex>` over the escrowed keyring bytes. The operator refuses to seal until the sidecar reports the same digest for the live keyring file.
`lastEscrowTime`	timestamp	When the current version was accepted.
`unsealedSince`	timestamp	When the site entered `Unsealed`. Drives `keyring.escrowTimeoutSeconds`.
`message`	string	Human-readable explanation of the current phase.
`coverage`	SiteEncryptionCoverage	What was actually observed on the live instance.

SiteEncryptionCoverage

Sampled from the live instance, not inferred from my.cnf. A site can be Sealed and still have incomplete coverage -- for example an adopted cluster whose pre-existing tables were never rebuilt.

Field	Type	Description
`keyringComponent`	string	`Component_name` from `performance_schema.keyring_component_status`.
`keyringReadOnly`	bool	The component's `Read_only` status. Must be `true` in the `Sealed` phase.
`systemTablespaceEncrypted`	bool	Whether the `mysql` tablespace is encrypted.
`unencryptedTablespaces`	int	User tablespaces still reporting `ENCRYPTION='N'`. Non-zero means part of your data is in the clear.
`redoLogEncrypted`	bool	`@@innodb_redo_log_encrypt`
`undoLogEncrypted`	bool	`@@innodb_undo_log_encrypt`
`binlogEncrypted`	bool	`@@binlog_encryption`
`lastCheckTime`	timestamp	When coverage was last sampled.

DragonflyStatus

Field	Type	Description
`enabled`	bool	Mirrors `spec.dragonfly.enabled` at last observation.
`activeSite`	string	Site currently acting as Dragonfly master. Usually matches `status.activeSite`; may briefly diverge during planned failover.
`phase`	string	`Disabled`, `Reconciling`, `ConfiguringReplication`, `Ready`, `Degraded`, or `Promoting`.
`message`	string	Human-readable status summary.
`lastPromotionTime`	timestamp	Last successful Dragonfly promotion time.
`lastPromotionTarget`	string	Site promoted in the last successful Dragonfly promotion.
`sites`	DragonflySiteStatus	Per-site Dragonfly observation.
`upgrade`	DragonflyUpgradeStatus	Snapshot-restore upgrade progress when requested by annotation.

DragonflySiteStatus

Field	Type	Description
`name`	string	Site identifier.
`role`	string	`master`, `replica`, `stale-master`, `unconfigured`, `unreachable`, or `unknown`.
`reachable`	bool	Whether the operator completed an `INFO replication` call on the latest poll.
`serviceName`	string	Site-local Dragonfly Service name.
`podName`	string	Dragonfly pod name when known.
`replicationState`	string	Raw Dragonfly `role` value from `INFO replication`.
`linkStatus`	string	Replica `master_link_status`; empty on a master.
`syncInProgress`	bool	Whether Dragonfly reports a full sync in progress.
`lastIOSecondsAgo`	int	Seconds since the replica last received data from its master; `-1` means never.
`ready`	bool	Operator-level readiness for the Dragonfly role.
`message`	string	Human-readable per-site status.

Annotations

Annotation	Description
`bloodraven.shipstream.io/last-failover`	Operator-owned out-of-band copy of `status.lastFailover`, formatted as an RFC3339 UTC timestamp at second precision. Do not edit manually. Reset tooling clears it together with status history.
`bloodraven.shipstream.io/last-failover-target`	Operator-owned out-of-band copy of `status.lastFailoverTarget`. It is always written and cleared as a pair with `last-failover`. Do not edit manually.
`bloodraven.shipstream.io/reclone-site`	Triggers a `CLONE INSTANCE` from the current primary to the named site. Value format depends on the target's state: `<site>:confirm=<group-name>` for a cold reclone (no divergent GTID recorded), or `<site>:<gtid-prefix>` when `status.sites[].divergentGtid` is non-empty — the prefix must be 8+ characters and match the observed divergent GTID. Both forms act as a fat-finger interlock (cold path added by AUDIT L3 / WISHLIST #5). Invalid annotations are rejected with a `RecloneRejected` Warning Event and cleared. Valid ones emit `RecloneRequested` and report progress via the `Bootstrapping` condition.
`bloodraven.shipstream.io/planned-failover`	Starts a planned failover to the named site. When Dragonfly is enabled, the planned-failover status includes a `dragonfly` substatus with session-preservation details.
`bloodraven.shipstream.io/dragonfly-snapshot-upgrade`	Starts the Dragonfly snapshot-restore upgrade workflow to the target image. Requires `spec.dragonfly.snapshot` to be configured.
`bloodraven.shipstream.io/rotate-keyring`	Rotates the named site's InnoDB master key. Refused on the active primary -- rotation is the one operation whose failure window would cost data rather than a re-clone, so the supported procedure is to rotate replicas, run a planned failover, then rotate the ex-primary. Also refused while an ordered update or planned failover is in flight. Cleared automatically once the target site is `Sealed` again.
`bloodraven.shipstream.io/encryption-adopt`	Set to `confirm` to enable encryption on a failover group that already holds data, acknowledging that pre-existing tablespaces stay plaintext until they are rebuilt. `status.encryptionAtRest.sites[].coverage.unencryptedTablespaces` reports how much is still exposed.

Example status

status:
  activeSite: iad
  sites:
    - name: iad
      state: writable
      lastSeen: "2025-01-01T00:00:00Z"
      replicating: false
    - name: pdx
      state: read-only
      lastSeen: "2025-01-01T00:00:00Z"
      replicating: true
      secondsBehindSource: 0
      gtidExecuted: "uuid:1-100"
      sourceHost: mysql-orders-iad-internal.orders.svc.cluster.local
      sourceConvergenceState: Converged
      sourceConvergenceReason: DirectSource
    - name: reader
      state: read-only
      lastSeen: "2025-01-01T00:00:00Z"
      replicating: true
      secondsBehindSource: 0
      gtidExecuted: "uuid:1-100"
      sourceHost: mysql-orders-iad-internal.orders.svc.cluster.local
      sourceConvergenceState: Converged
      sourceConvergenceReason: DirectSource
  conditions:
    - type: Ready
      status: "True"
    - type: Degraded
      status: "False"
  lastFailover: "2025-01-01T00:00:00Z"
  lastFailoverTarget: iad
  dragonfly:
    enabled: true
    activeSite: iad
    phase: Ready
    message: all sites ready
    sites:
      - name: iad
        role: master
        reachable: true
        ready: true
      - name: pdx
        role: replica
        reachable: true
        linkStatus: up
        ready: true

`MysqlStandbyCluster`

Phase 1 of WISHLIST #7. A passive DR relationship descriptor that lives on the DR cluster and continuously monitors a source MysqlFailoverGroup's backup archive in a shared object store. The controller populates status.discovered and stamps readiness conditions on a configurable cadence. No mysqld is started; no dump is loaded in Phase 1.

See Multi-cluster DR for the end-to-end recovery runbook and a full explanation of what Phase 1 does and does not provide.

Top-level spec fields

Field	Type	Required	Default	Description
`transport`	string	No	`ObjectStore`	Transport mode. Only `ObjectStore` is honored in v1alpha1; `Network` is reserved.
`source`	StandbySource	Yes	--	Identifies the source archive: bucket, prefix, profile name, optional decryption.
`template`	StandbyFailoverGroupTemplate	Yes	--	Embedded `MysqlFailoverGroupSpec` the controller will materialize on activation (Phase 3). Required (not optional) so the full activated topology is validated at standby-CR-create-time while the cluster is calm, rather than failing late mid-incident during a promote. Declare it now, not during an outage.
`freshness`	StandbyFreshnessSpec	No	--	Phase 1 bucket-discovery cadence (`discoveryInterval` only).

StandbySource

Field	Type	Required	Description
`failoverGroupName`	string	Yes	Source `MysqlFailoverGroup` name. Informational; used in events and status.
`namespace`	string	No	Source MFG namespace in its own cluster. Informational.
`cluster`	string	No	Free-form source cluster identifier (e.g. `us-west-prod`). Informational.
`storage`	BackupStorage	Yes	Object-store backend (same shape as `spec.backup.profiles[].storage`). The controller refuses to write to it.
`profileName`	string	Yes	Backup profile name under which dumps and binlogs are stored.
`decryption`	BackupDecryptionSpec	No	Passphrase Secret to decrypt source artifacts. Must exist in the DR namespace.

StandbyFreshnessSpec

Field	Type	Default	Description
`discoveryInterval`	duration	`5m`	How often the controller re-scans the bucket to refresh `status.discovered`. Minimum `30s`.

The Phase 2 verification cadence and staleness knobs (verifySchedule, verifyTimeZone, maxStaleness, suspend, retentionFloorRefresh) and the Phase 3 spec.activate block are not part of v1alpha1. They will be added back (backward-compatibly) when the code that consumes them ships. Until then they are absent from the structural schema, so they have no effect: the API server prunes them (they are silently dropped and never persisted), and clients using strict server-side field validation — the default for kubectl apply/create since Kubernetes 1.25 — reject them outright.

Status

Field	Type	Description
`discovered`	StandbyDiscovered	Most recent successful bucket scan: dump location, name, completion time, GTID set, size, and binlog window timestamps. Encryption detection (BRV1 header) is deferred to Phase 2.
`lastVerified`	StandbyLastVerified	Most recent terminal `MysqlBackupVerification` owned by this CR (Phase 2).
`activation`	StandbyActivationStatus	One-shot promote audit trail: phase, source/target GTIDs, PITR stop datetime, replayed binlog count, active site, reason, message (Phase 3).
`materializedFailoverGroup`	string	Name of the `MysqlFailoverGroup` created during activation. Empty until `Activated` (Phase 3).
`conditions`	Condition	Standard Kubernetes conditions. See below.

Conditions

Type	Phase populated	Meaning
`BucketReadable`	Phase 1	Bucket scan succeeded within the last discovery interval. Reason: `ListSucceeded` (True), `ListFailed` (False), `ScanIncomplete` (False — the `List` call did not complete before the scan deadline; a context deadline/cancel during `List`, distinct from a genuine `ListFailed`. The previous `status.discovered` is preserved), `AuthFailed` (False — store construction failed, e.g. bad credentials), or `ConfigError` (False — missing/invalid spec fields).
`SourceConfigKnown`	Phase 1	At least one full dump and one binlog manifest were found. Reason: `DumpFound` (True), `NoDumpFound` (False), `NoBinlogManifests` (False — dump found, no PITR window yet: a dump exists but no binlog manifests are under `<prefix>/binlogs/`, so recovery is limited to the dump. This is the expected state for a dump-only source or a brand-new source, not a misconfiguration), `MetadataUnreadable` (False — dump `@.json` present but genuinely malformed/cannot be parsed), `ScanIncomplete` (False — the scan was cut short by a context deadline/cancel before reading every dump `@.json` or all manifests; the partial selection is not published, the previous `status.discovered` is preserved as last-known-good, and no `BucketScanned` event is emitted), or `ConfigError` (False — propagated from storage backend error). The default `kubectl get` printcolumn surfaces this as the neutral `SourceKnown`.
`Restorable`	Phase 2	Most recent owned `MysqlBackupVerification` is Succeeded and within a future staleness threshold (Phase 2).
`ActivationInProgress`	Phase 3	True while activation phase is non-terminal.
`Active`	Phase 3	True when `status.activation.phase == Activated`.

Edit this page

Production hardening checklist

CRD versioning and migration plan
